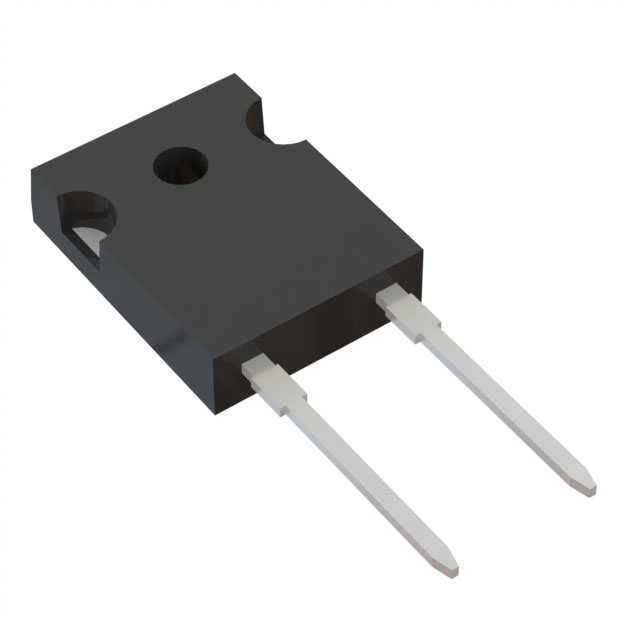

DTH6007PT
DIODE 650V 60A TO247-2Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated DTH6007PT is a high-performance rectifier diode with a maximum reverse voltage rating of 650 V and an average rectified forward current capability of 60 A. This component features a forward voltage drop of 2.4 V at 60 A and a reverse leakage current of 100 µA at 650 V, ensuring efficient operation. The TO-247-2 (Type HE) through-hole package facilitates robust mounting and thermal management. With a fast recovery time of 60 ns, the DTH6007PT is suitable for demanding applications in power supply units, motor control, and industrial equipment where reliable and efficient rectification is critical. The operating junction temperature ranges from -55°C to 175°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 62 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | - |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | TO-247-2 (Type HE) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 60 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 650 V |
