DTH3006DQ
LINEAR ICManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

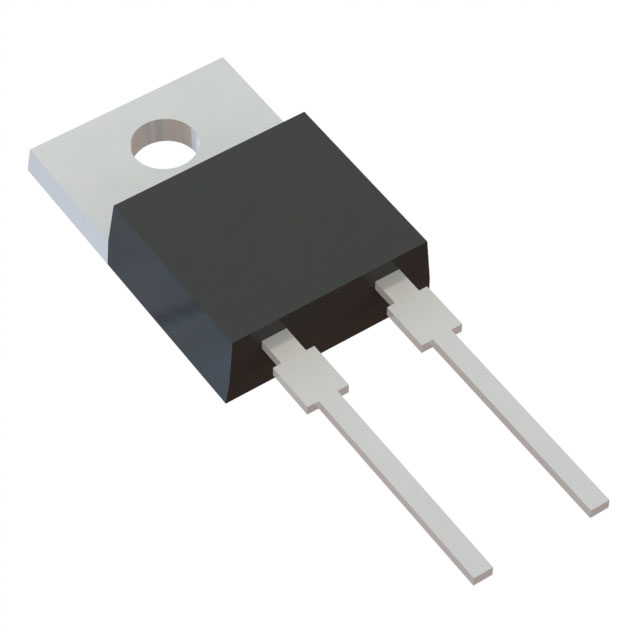

Diodes Incorporated DTH3006DQ is a high-performance power diode with a 600V reverse voltage rating and a 30A average rectified current capability. This component features a fast recovery time of 45 ns, suitable for applications requiring efficient switching. The DTH3006DQ is housed in a TO-220AC (Type WX) package for through-hole mounting, offering robust thermal performance. Its junction operating temperature range is -55°C to 175°C. With a forward voltage drop of 2.4V at 30A and a reverse leakage of 100 µA at 600V, this diode is designed for demanding power conversion circuits in automotive and industrial applications. The component is qualified to AEC-Q101 standards.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 160pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO220AC (Type WX) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 30 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
| Qualification | AEC-Q101 |
