DTH1506D
FRED GPP RECTIFIER TO220AC TUBEManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

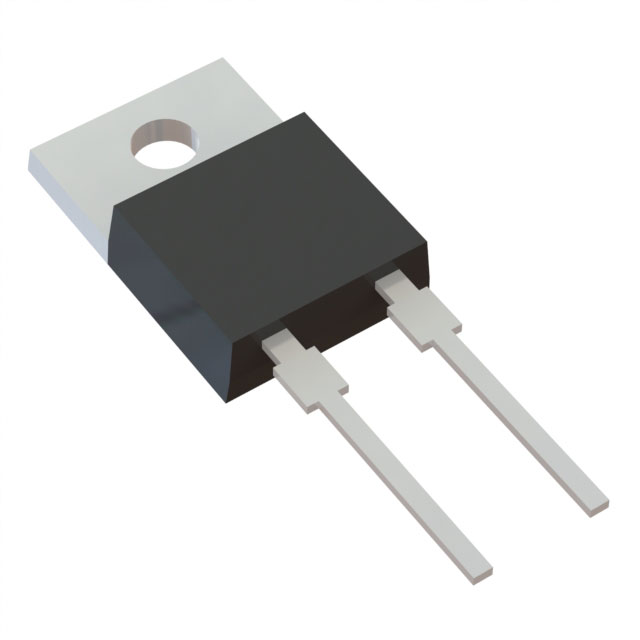

Diodes Incorporated DTH1506D is a FRED GPP rectifier with a 600V reverse voltage and a 15A average rectified current. This fast recovery diode, specified with a typical reverse recovery time of 30 ns, is housed in a TO220AC (Type WX) through-hole package. The device exhibits a maximum forward voltage of 2.9V at 15A and a reverse leakage current of 45 µA at 600V. Operating across a junction temperature range of -55°C to 150°C, the DTH1506D is suitable for applications requiring efficient rectification in power supply units and automotive systems. The component is supplied in tubes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO220AC (Type WX) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 15 A |
| Current - Reverse Leakage @ Vr | 45 µA @ 600 V |
