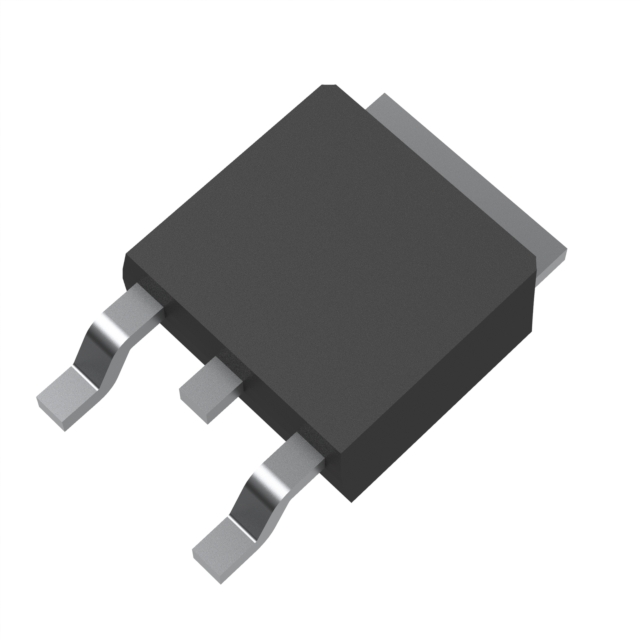

DSC10120D1-13
SILICON CARBIDE RECTIFIER TO252Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated DSC10120D1-13 is a Silicon Carbide Schottky Rectifier designed for high-efficiency power conversion applications. This component features a 1200 V reverse voltage rating and a 10 A average forward current capability. Exhibiting zero reverse recovery time, it minimizes switching losses, making it ideal for demanding applications such as power supplies, electric vehicle charging, and industrial motor control. The device is housed in a TO-252 (Type WX) surface-mount package, facilitating integration into compact designs. Its low forward voltage drop of 1.7 V at 10 A and a reverse leakage current of 640 µA at 1200 V further contribute to its operational efficiency. The operating junction temperature range is -55°C to 175°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 608pF @ 100mV, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-252 (Type WX) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 10 A |
| Current - Reverse Leakage @ Vr | 640 µA @ 1200 V |
