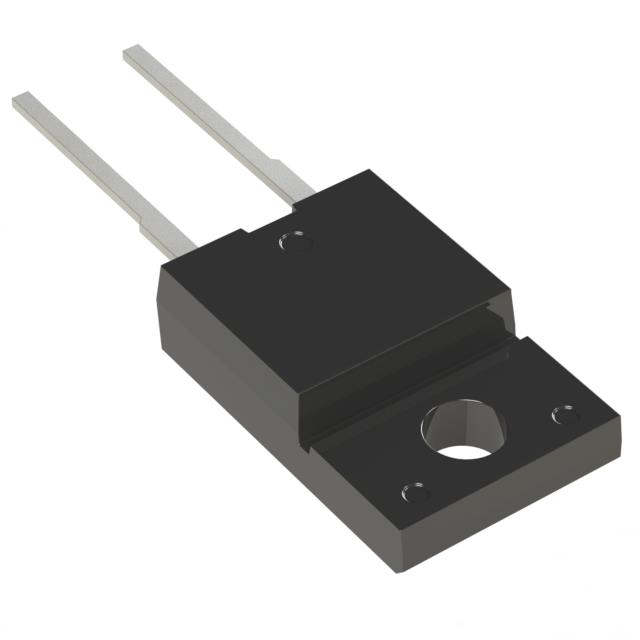

DSC04A065FP
SILICON CARBIDE RECTIFIER ITO-22Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated DSC04A065FP is a 650V, 4A Silicon Carbide (SiC) Schottky rectifier. This through-hole component, packaged in an ITO-220AC (Type WX) housing, offers a forward voltage (Vf) of 1.5V at 4A, with a reverse leakage current of 170 µA at 650V. The device features a capacitance of 191pF at 100mV and 1MHz. Its fast recovery speed is rated at less than 500ns for currents greater than 200mA. The operating junction temperature range is -55°C to 175°C. This SiC rectifier is suitable for applications in power supplies, solar inverters, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 191pF @ 100mV, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | ITO-220AC (Type WX) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 4 A |
| Current - Reverse Leakage @ Vr | 170 µA @ 650 V |
