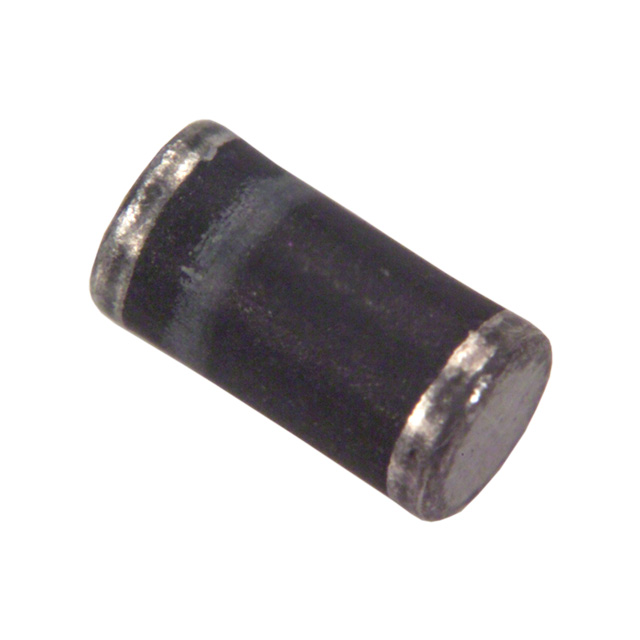

DL4934-13-F
DIODE GEN PURP 100V 1A MELFManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated DL4934-13-F is a general-purpose rectifier diode featuring a 100V reverse voltage rating and a 1A average rectified current capability. This MELF (Glass) packaged device, designated as DO-213AB, offers a forward voltage drop of 1.2V maximum at 1A. Its reverse leakage current is specified at 5 µA maximum at 100V. The diode exhibits a reverse recovery time of 200 ns, classifying it within the fast recovery speed category. With a junction operating temperature range of -65°C to 150°C and a capacitance of 15pF @ 4V, 1MHz, the DL4934-13-F is suitable for power supply, lighting, and consumer electronics applications. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | DO-213AB, MELF (Glass) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | MELF |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
