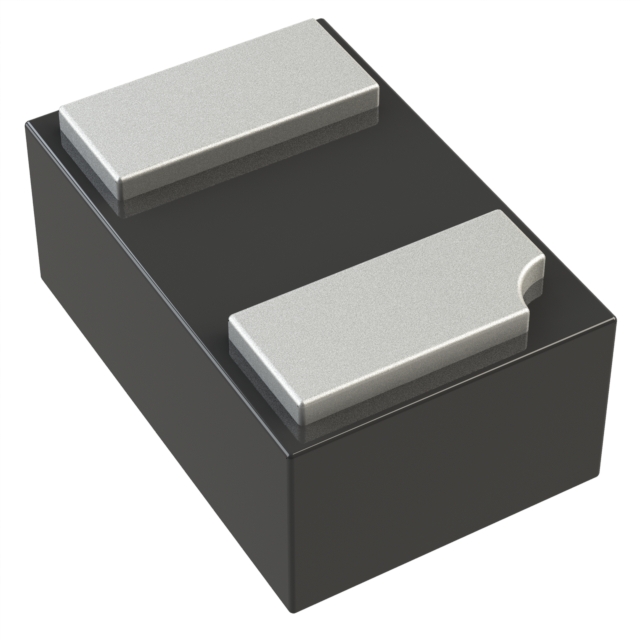

BAS40LP-7-2477
DIODEManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated BAS40LP-7-2477 is a surface-mount Schottky diode designed for high-speed switching applications. This component offers a maximum reverse voltage of 40V and an average rectified forward current of 200mA. Key specifications include a forward voltage of 1V at 40mA and a reverse leakage current of 200 nA at 30V. The diode exhibits a typical capacitance of 2.3pF at 0V and 1MHz, with a reverse recovery time of 5 ns. Packaged in a compact X1-DFN1006-2 (0402 metric) footprint, it is suitable for space-constrained designs. Operating over a junction temperature range of -55°C to 150°C, this diode finds application in consumer electronics, telecommunications, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 2.3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | X1-DFN1006-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 40 mA |
| Current - Reverse Leakage @ Vr | 200 nA @ 30 V |
