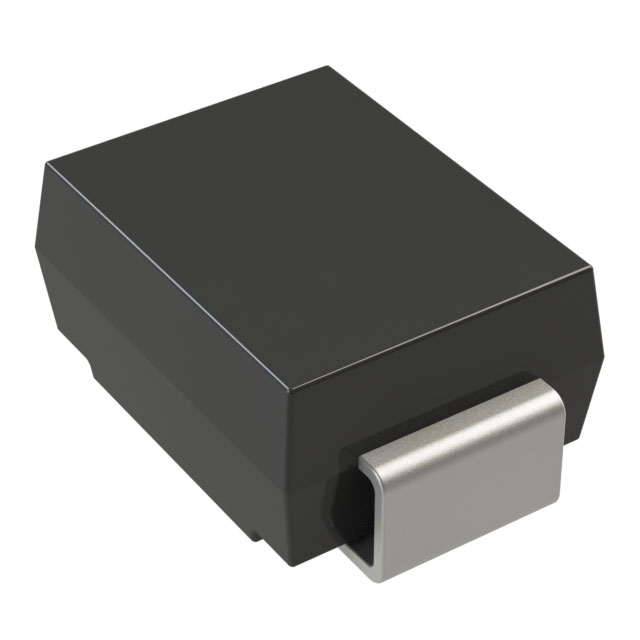

B540C-13-F-2477

DIODE

Manufacturer: Diodes Incorporated

Categories: Single Diodes

Quality Control: Learn More

Diodes Incorporated B540C-13-F-2477 is a Schottky rectifier with a 40V reverse voltage and 5A average rectified current capability. This surface mount component, packaged in an SMC (DO-214AB), features a low forward voltage drop of 550mV at 5A. Its reverse leakage current is rated at 500 µA at 40V. The B540C-13-F-2477 is specified for fast recovery, with a speed classification of <= 500ns for currents > 200mA. Operating junction temperatures range from -55°C to 150°C. This device is AEC-Q101 qualified, making it suitable for automotive applications, including power management and circuit protection within vehicle systems. Capacitance is listed as 300pF at 4V and 1MHz.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseDO-214AB, SMC
Mounting TypeSurface Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Capacitance @ Vr, F300pF @ 4V, 1MHz
Current - Average Rectified (Io)5A
Supplier Device PackageSMC
Operating Temperature - Junction-55°C ~ 150°C
GradeAutomotive
Voltage - DC Reverse (Vr) (Max)40 V
Voltage - Forward (Vf) (Max) @ If550 mV @ 5 A
Current - Reverse Leakage @ Vr500 µA @ 40 V
QualificationAEC-Q101
