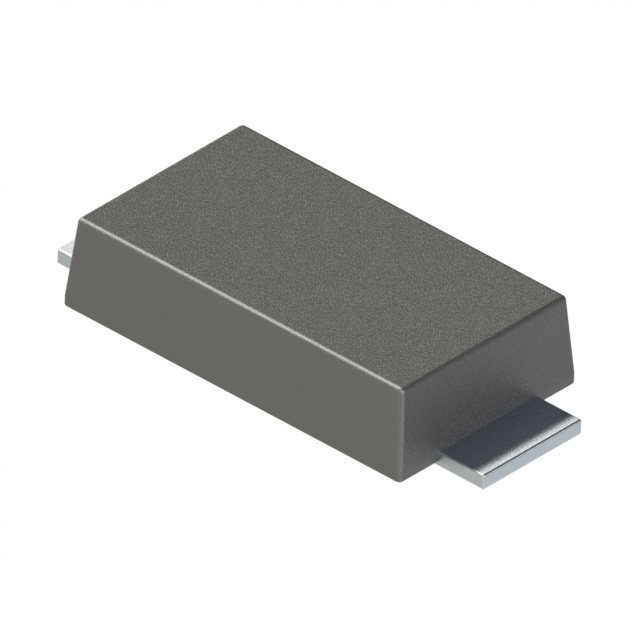

B340AXS-13
DIODE SCHOTTKY 40V 3A SMA-FS 10KManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More
Diodes Incorporated B340AXS-13 is a Schottky diode with a maximum DC reverse voltage of 40V and an average rectified current of 3A. This component features a low forward voltage of 500mV at 3A, facilitating efficient power conversion. Its reverse leakage current is specified at 200 µA at 40V. The device offers a capacitance of 285pF at 4V and 1MHz, suitable for various high-frequency applications. The B340AXS-13 is housed in a DO-214AC, SMA Flat Leads (SMA-FS) package, designed for surface mounting. Operating junction temperatures range from -55°C to 150°C. This diode is commonly utilized in power supplies, automotive electronics, and industrial control systems. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 285pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | SMA-FS |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V |
