B240AF-13-2477
DIODEManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

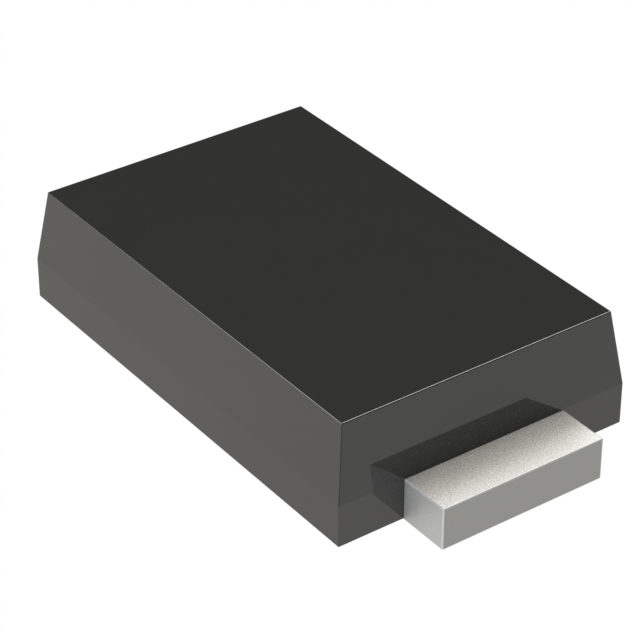

Diodes Incorporated B240AF-13-2477 is a 40V, 2A Schottky rectifier in a SMAF (DO-214AC) surface-mount package. This diode offers a low forward voltage of 500mV at 2A and a reverse leakage current of 200µA at its maximum reverse voltage of 40V. Its capacitance is rated at 93pF at 4V and 1MHz. Operating across a junction temperature range of -55°C to 150°C, this component is suitable for applications requiring efficient rectification in power supplies, automotive electronics, and consumer goods. The device's fast recovery characteristic, specified as less than 500ns for currents greater than 200mA, makes it a reliable choice for high-frequency switching circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-214AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 93pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMAF |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V |
