B130LAW-7-F-2477
DIODEManufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

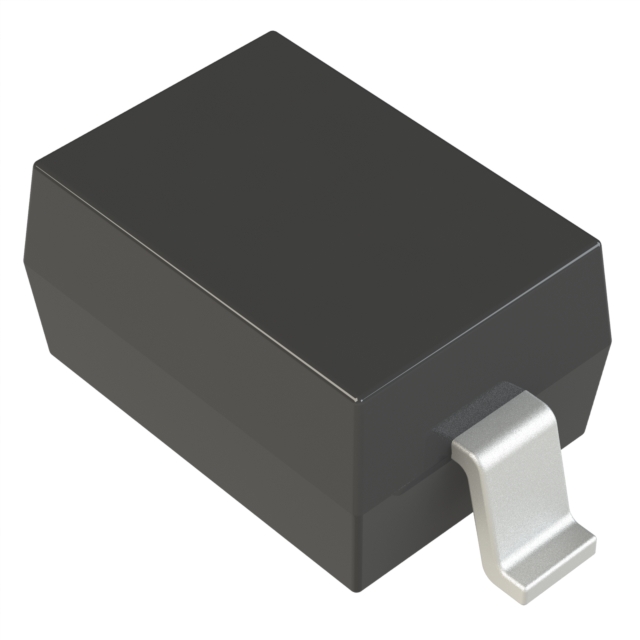

Diodes Incorporated B130LAW-7-F-2477, a 30V, 1A Schottky diode, is optimized for high-frequency rectification and switching applications. This surface mount component, housed in a compact SOD-123 package, features a low forward voltage of 420mV at 1A and a reverse leakage of 1mA at 30V. Its fast recovery time, characterized as <= 500ns for currents > 200mA (Io), makes it suitable for power supply circuits, voltage clamping, and general-purpose rectification. The device operates across a junction temperature range of -55°C to 125°C. Typical capacitance at 10V and 1MHz is 40pF. This component finds application in consumer electronics, telecommunications, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 30 V |
