APD360VPL-G1
DIODE SCHOTTKY 60V 3A DO201Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

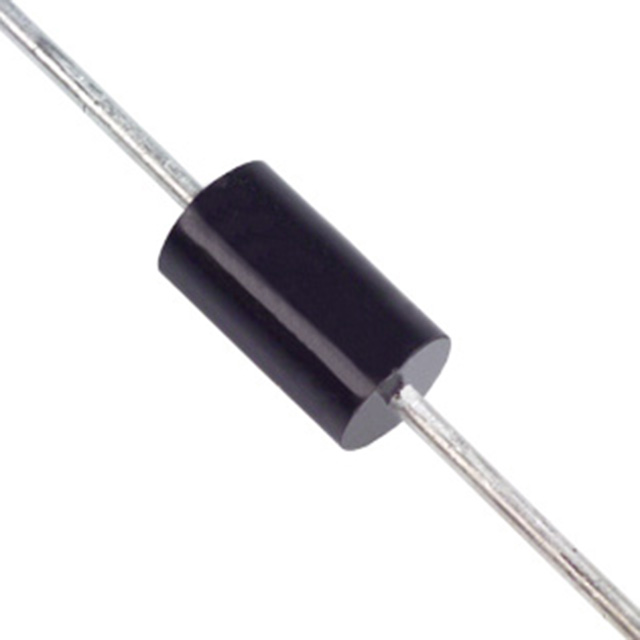

Diodes Incorporated APD360VPL-G1 is a 60V Schottky rectifier designed for high-efficiency power rectification. This axial-leaded component, housed in a DO-201/DO-201AA package, offers a maximum forward voltage of 680 mV at 3A. It exhibits a low reverse leakage current of 500 µA at 60V and a fast recovery time, typically less than 500ns, making it suitable for applications requiring rapid switching. The APD360VPL-G1 operates across a junction temperature range of -50°C to 125°C and is supplied in bulk packaging. This device finds application in power supplies, voltage clamping circuits, and general-purpose rectification within industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-201AA, DO-27, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201 |
| Operating Temperature - Junction | -50°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 60 V |
