1N4005-T
DIODE GEN PURP 600V 1A DO41Manufacturer: Diodes Incorporated
Categories: Single Diodes
Quality Control: Learn More

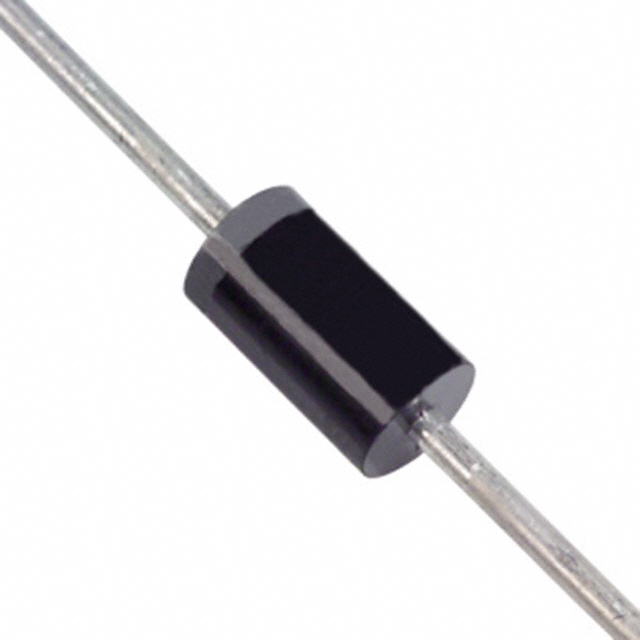

Diodes Incorporated 1N4005-T is a standard recovery general-purpose diode. This axial leaded component offers a 600V DC reverse voltage and a 1A average rectified forward current. Featuring a maximum forward voltage of 1V at 1A, it exhibits a reverse leakage current of 5 µA at 600V. The diode's capacitance is rated at 8pF at 4V and 1MHz. Packaged in a DO-41 (DO-204AL) through-hole configuration, it operates within a junction temperature range of -65°C to 150°C. The 1N4005-T is commonly employed in power supply rectification, voltage clamping, and general signal processing across various industrial and consumer electronics applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 8pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
