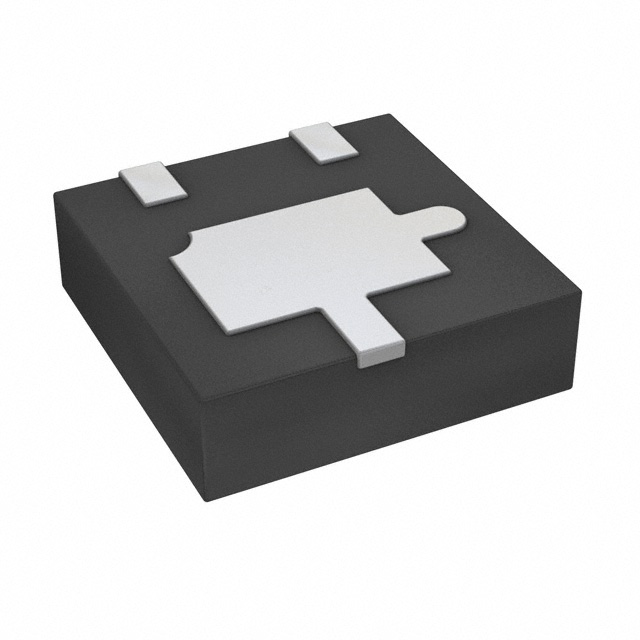

ZXTP717MATA
TRANS PNP 12V 4.5A 3DFNManufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 12 V 4.5 A 100MHz 3 W Surface Mount U-DFN2020-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 310mV @ 150mA, 4A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 100mA, 2V |
| Frequency - Transition | 100MHz |
| Supplier Device Package | U-DFN2020-3 |
| Current - Collector (Ic) (Max) | 4.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Power - Max | 3 W |
