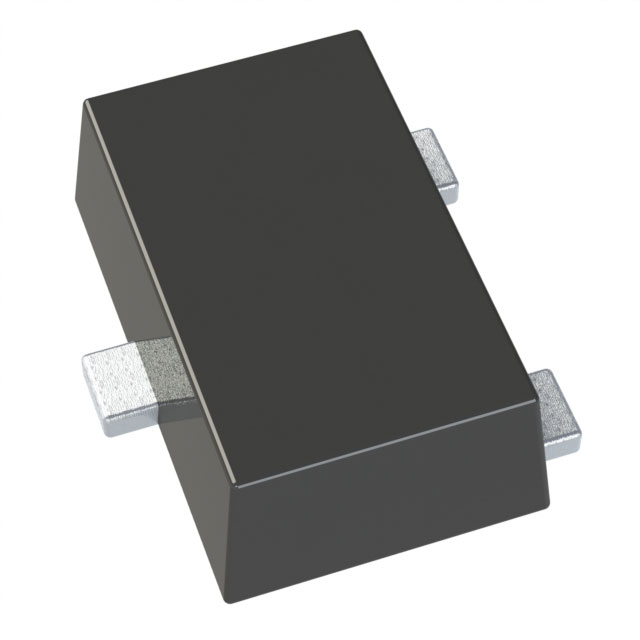

ZXTP05120HFFTA
TRANS PNP DARL 120V 1A SOT23FManufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP - Darlington 120 V 1 A 150MHz 1.5 W Surface Mount SOT-23F
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-3 Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Darlington |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 2mA, 2A |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 3000 @ 1A, 5V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | SOT-23F |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 120 V |
| Power - Max | 1.5 W |
