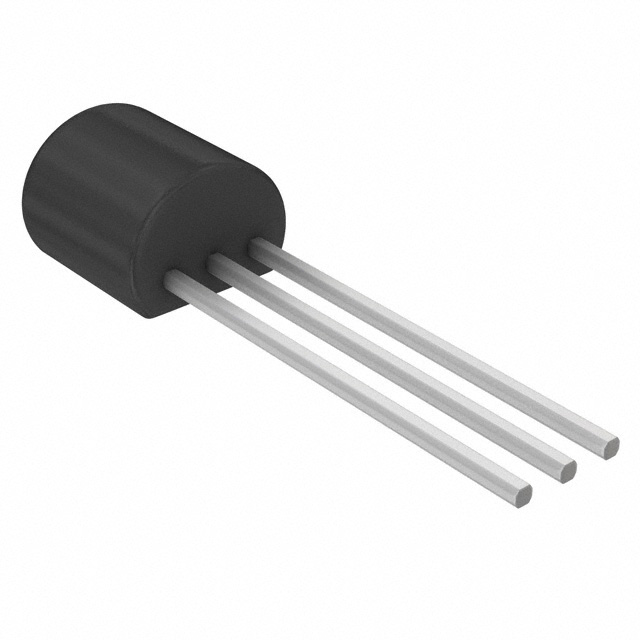

ZX5T851A
TRANS NPN 60V 4.5A TO92-3Manufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Diodes Incorporated ZX5T851A is an NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. This through-hole component features a maximum collector-emitter breakdown voltage of 60V and a continuous collector current capability of 4.5A. With a transition frequency of 130MHz, it is suitable for frequencies up to this limit. The ZX5T851A offers a minimum DC current gain (hFE) of 100 at 2A and 1V, and a power dissipation of 1W. Key parameters include a Vce(sat) of 210mV at 200mA and 5A, and a collector cutoff current of 20nA. The E-Line (TO-92 compatible) package is provided in bulk packaging. This device finds application in consumer electronics, industrial control systems, and power management circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | E-Line-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 210mV @ 200mA, 5A |
| Current - Collector Cutoff (Max) | 20nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 2A, 1V |
| Frequency - Transition | 130MHz |
| Supplier Device Package | E-Line (TO-92 compatible) |
| Current - Collector (Ic) (Max) | 4.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 1 W |
