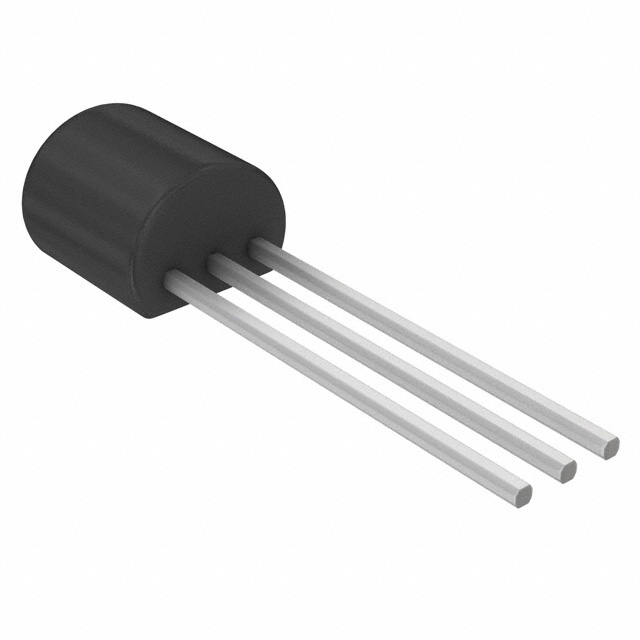

ZTX956STOB
TRANS PNP 200V 2A E-LINEManufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Diodes Incorporated ZTX956STOB is a high-voltage PNP bipolar junction transistor (BJT) designed for demanding applications. This component offers a robust 200V collector-emitter breakdown voltage (Vceo) and can handle a continuous collector current (Ic) of up to 2A. With a minimum DC current gain (hFE) of 100 at 1A and 5V, it provides reliable amplification. The transition frequency (fT) is 110MHz, suitable for moderate frequency switching and amplification tasks. Featuring a maximum power dissipation of 1.58W, this transistor is packaged in an E-Line (TO-92 compatible) through-hole format, supplied on tape and reel. Key specifications include a Vce(sat) of 250mV at 400mA/2A and a low collector cutoff current (ICBO) of 50nA. The operating temperature range extends from -55°C to 200°C. This device finds utility in power switching, linear regulation, and general-purpose amplification circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | E-Line-3, Formed Leads |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 400mA, 2A |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V |
| Frequency - Transition | 110MHz |
| Supplier Device Package | E-Line (TO-92 compatible) |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 200 V |
| Power - Max | 1.58 W |
