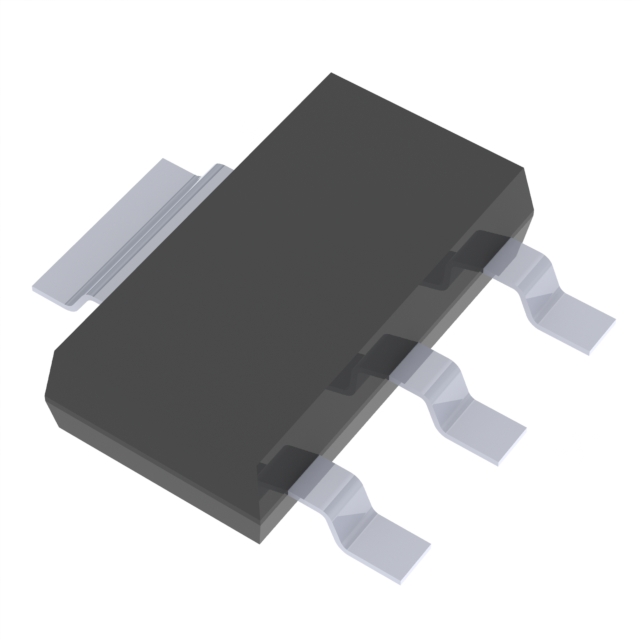

FZT560QTC
PWR HI VOLTAGE TRANSISTOR SOT223Manufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 500 V 150 mA 60MHz 2 W Surface Mount SOT-223
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 10V |
| Frequency - Transition | 60MHz |
| Supplier Device Package | SOT-223 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 500 V |
| Power - Max | 2 W |
| Qualification | AEC-Q101 |
