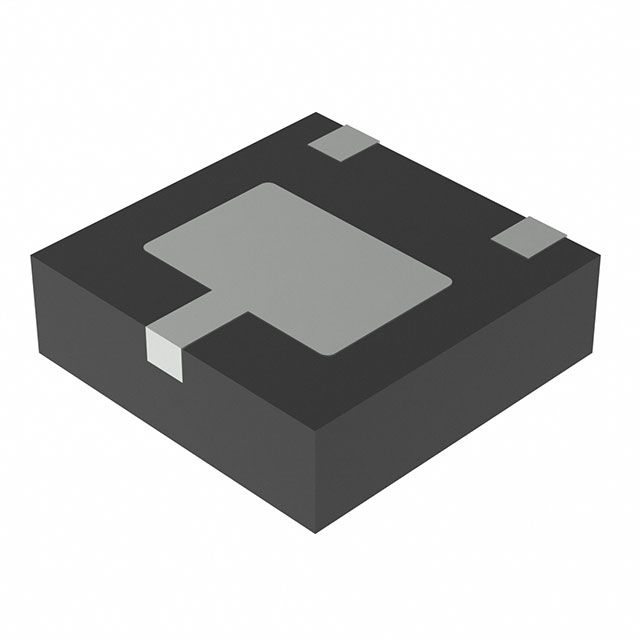

DXTN10060DFJBQ-7
TRANS NPN 60V 4A 3DFNManufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 60 V 4 A 125MHz 1.8 W Surface Mount U-DFN2020-3 (Type B)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 320mV @ 200mA, 4A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 340 @ 200mA, 2V |
| Frequency - Transition | 125MHz |
| Supplier Device Package | U-DFN2020-3 (Type B) |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Power - Max | 1.8 W |
| Qualification | AEC-Q101 |
