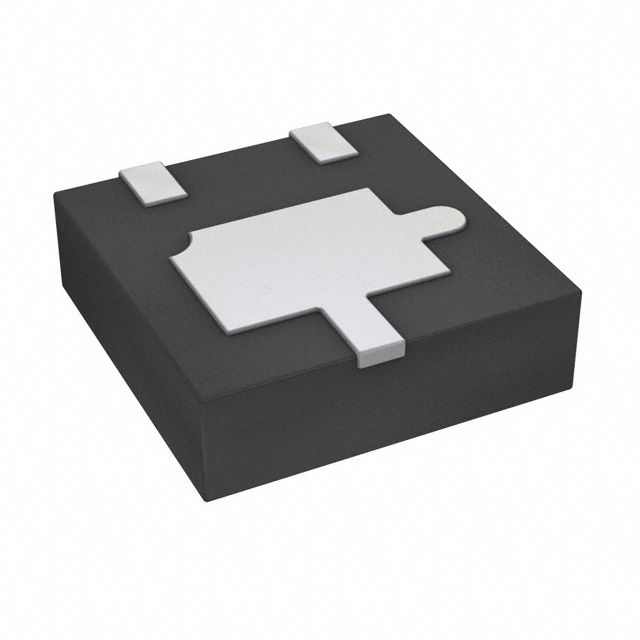

BC56-16PA-7
TRANS NPN 80V 1A 3DFNManufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 80 V 1 A 125MHz 520 mW Surface Mount U-DFN2020-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V |
| Frequency - Transition | 125MHz |
| Supplier Device Package | U-DFN2020-3 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Power - Max | 520 mW |
| Qualification | AEC-Q101 |
