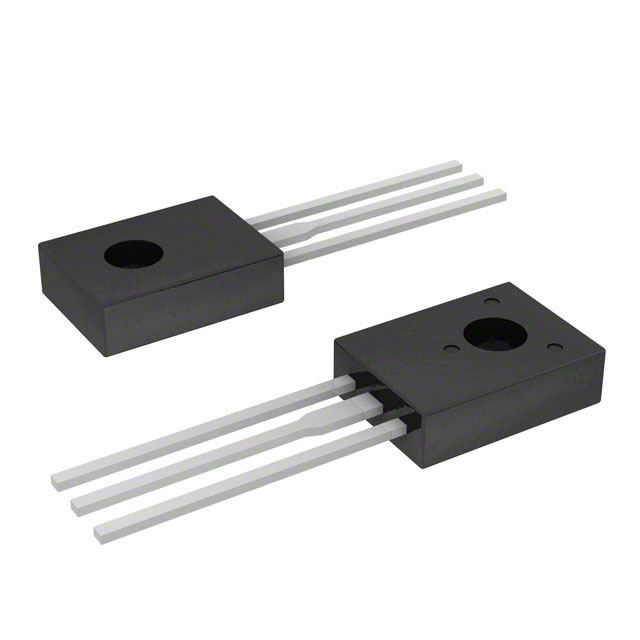

APT13005SU-G1
TRANS NPN 450V 3.2A TO126Manufacturer: Diodes Incorporated
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 450 V 3.2 A 4MHz 20 W Through Hole TO-126
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-225AA, TO-126-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 750mA, 3A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 2A, 5V |
| Frequency - Transition | 4MHz |
| Supplier Device Package | TO-126 |
| Current - Collector (Ic) (Max) | 3.2 A |
| Voltage - Collector Emitter Breakdown (Max) | 450 V |
| Power - Max | 20 W |
Request a Quote
