PI6ULS5V9517BZEEX
INTERFACE ULS W-DFN2030-8Manufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
Diodes Incorporated's PI6ULS5V9517BZEEX is a 2-channel buffer/reDriver designed for I2C applications. This electronic component features a 2-wire bus interface and supports a maximum data rate of 400kHz. The device operates from a wide supply voltage range of 0.8V to 5.5V, with a typical supply current of 500µA. It is housed in an 8-WFDFN exposed pad package, with the supplier device package specified as 8-TDFN (2x3). The PI6ULS5V9517BZEEX is suitable for surface mounting and is supplied on a tape and reel. The typical delay time is 169ns. This component is commonly utilized in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Delay Time | 169ns |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Output | 2-Wire Bus |
| Type | Buffer, ReDriver |
| Input | 2-Wire Bus |
| Operating Temperature | - |
| Voltage - Supply | 0.8V ~ 5.5V |
| Applications | I2C |
| Current - Supply | 500µA |
| Data Rate (Max) | 400kHz |
| Supplier Device Package | 8-TDFN (2x3) |
| Signal Conditioning | - |
Request a Quote
Clients Also Buy

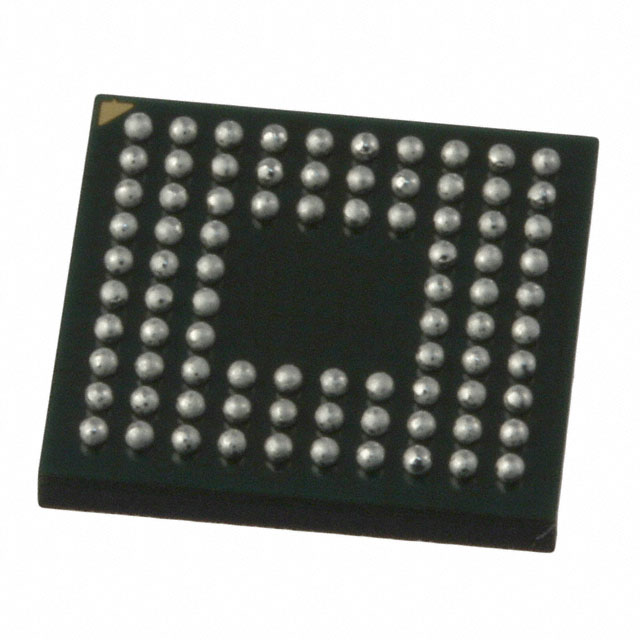

PI2EQX4402DNBE
