PI3EQX8908A2ZFEX
PCIE EQX W-QFN55100-54 T&R 3.5KManufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

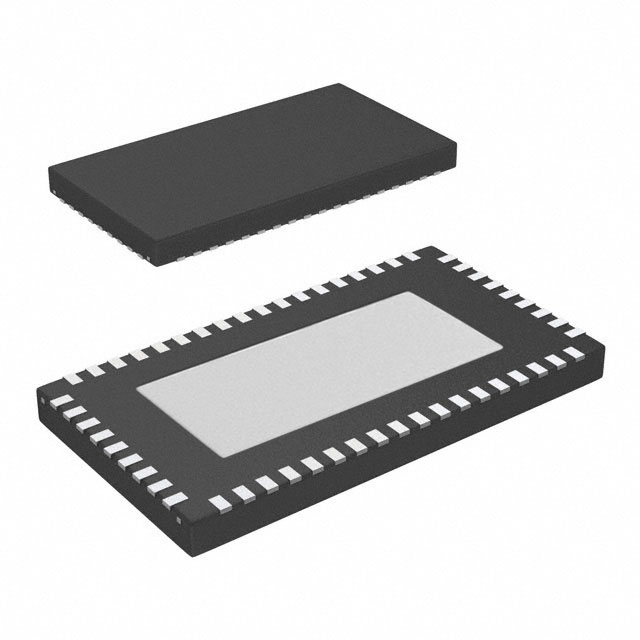

Diodes Incorporated PI3EQX8908A2ZFEX is an 8-channel PCI Express® ReDriver designed for high-speed signal integrity. This buffer supports data rates up to 8Gbps per lane, offering advanced signal conditioning with programmable input equalization and output de-emphasis to overcome channel losses. The device operates from a 3V to 3.6V supply and features CML inputs and outputs. Packaged in a 54-TQFN (10x5.5) exposed pad, the PI3EQX8908A2ZFEX is suitable for surface mount applications. Its robust performance makes it ideal for systems requiring reliable PCIe connectivity in computing, data center, and networking infrastructure. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: PCI Express®(PCIe), ReDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-WFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 8 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Buffer, ReDriver |
| Input | CML |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | PCIe |
| Current - Supply | - |
| Data Rate (Max) | 8Gbps |
| Supplier Device Package | 54-TQFN (10x5.5) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
