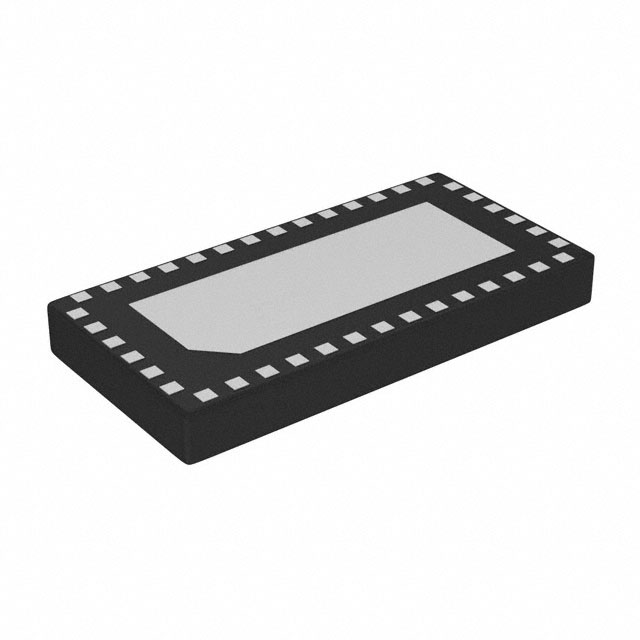

PI3EQX16621ZLDEX
PCIE EQX REDRIVER W-QFN3060-40Manufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
Diodes Incorporated PI3EQX16621ZLDEX is a 4-channel PCIe ReDriver designed for high-speed signal integrity applications. This device provides robust signal conditioning through input equalization, compensating for losses in channels up to 16Gbps. Featuring CML inputs and outputs, it ensures reliable data transmission in demanding environments. The PI3EQX16621ZLDEX is packaged in a compact 40-WFQFN exposed pad (3x6mm) and is supplied on tape and reel for efficient surface mount assembly. Its architecture is optimized for PCIe applications, including data centers, networking equipment, and high-performance computing systems. The device operates from a 3.3V supply.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Buffer, ReDriver |
| Input | CML |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Applications | PCIe |
| Current - Supply | - |
| Data Rate (Max) | 16Gbps |
| Supplier Device Package | 40-TQFN (3x6) |
| Signal Conditioning | Input Equalization |
