PI3EQX1004B2ZHEX
USB3 EQX V-QFN3590-42 T&R 3.5KManufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

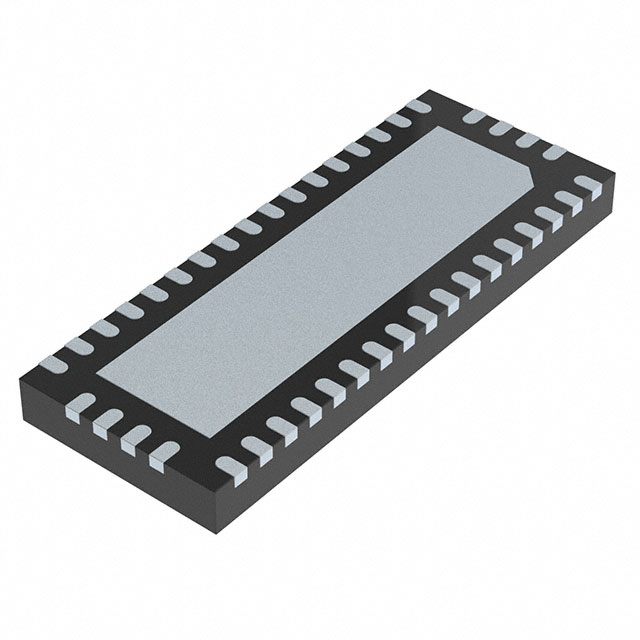

Diodes Incorporated PI3EQX1004B2ZHEX is a 4-channel ReDriver™ designed for high-speed signal integrity applications. This buffer IC supports a maximum data rate of 10Gbps, making it suitable for USB 3.0 interfaces. The PI3EQX1004B2ZHEX features input equalization for signal conditioning and utilizes CML signaling for both input and output. It is supplied in a 42-TQFN (9x3.5) package, intended for surface mount installation. The component operates at a 3.3V supply voltage and is provided in tape and reel packaging. This ReDriver is commonly utilized in networking, telecommunications, and consumer electronics sectors.
Additional Information
Series: ReDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 42-VFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Buffer, ReDriver |
| Input | CML |
| Operating Temperature | - |
| Voltage - Supply | 3.3V |
| Applications | USB 3.0 |
| Current - Supply | - |
| Data Rate (Max) | 10Gbps |
| Supplier Device Package | 42-TQFN (9x3.5) |
| Signal Conditioning | Input Equalization |
