PI3EQX1002B2ZLEX
USB3 EQX W-QFN2545-30 T&R 3.5KManufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

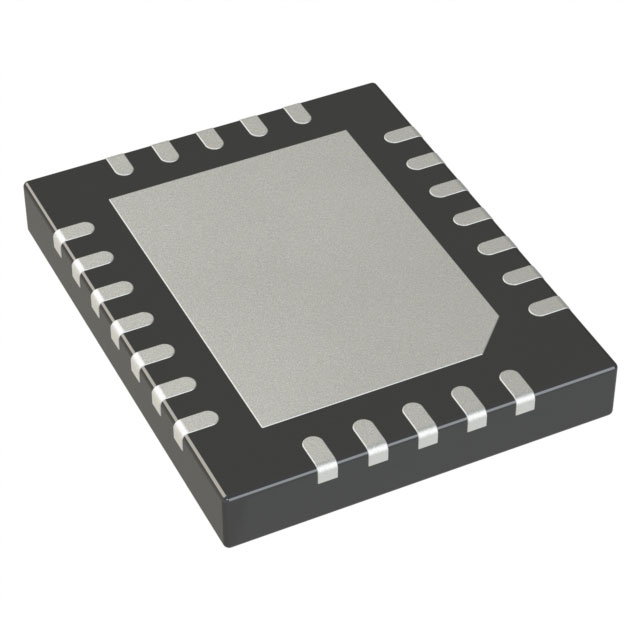

The Diodes Incorporated PI3EQX1002B2ZLEX is a 2-channel ReDriver™ designed for high-speed signal integrity applications. This buffer, part of the ReDriver™ series, supports a maximum data rate of 10Gbps, making it suitable for USB 3.0 interfaces. Featuring CML inputs and outputs, the PI3EQX1002B2ZLEX incorporates input equalization for enhanced signal conditioning. The device is supplied in a 30-TQFN (2.5x4.5) package, a 30-WFQFN Exposed Pad, suitable for surface mount assembly. This component is commonly utilized in consumer electronics and data communication systems where robust signal transmission is critical. The PI3EQX1002B2ZLEX is provided in Tape & Reel (TR) packaging.
Additional Information
Series: ReDriver™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Buffer, ReDriver |
| Input | CML |
| Operating Temperature | - |
| Voltage - Supply | 3.3V |
| Applications | USB 3.0 |
| Current - Supply | - |
| Data Rate (Max) | 10Gbps |
| Supplier Device Package | 30-TQFN (2.5x4.5) |
| Signal Conditioning | Input Equalization |
