PI2EQX22024XEAEX
ACTIVE DISPLAY X1-QFN2845-32 T&RManufacturer: Diodes Incorporated
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
Diodes Incorporated PI2EQX22024XEAEX is a 4-channel retimer designed for high-speed signal integrity applications. Featuring a data rate up to 10Gbps per channel, this component offers robust signal conditioning through input equalization and output de-emphasis. The device operates with a supply voltage range of 1.71V to 1.89V and has a maximum supply current of 360mA. Its CML inputs and outputs ensure compatibility with standard high-speed interfaces. The PI2EQX22024XEAEX is housed in a 32-XFQFN exposed pad package, supplied in Tape & Reel. This retimer is suitable for demanding applications including USB Type C, contributing to reliable data transmission in various consumer electronics and computing systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

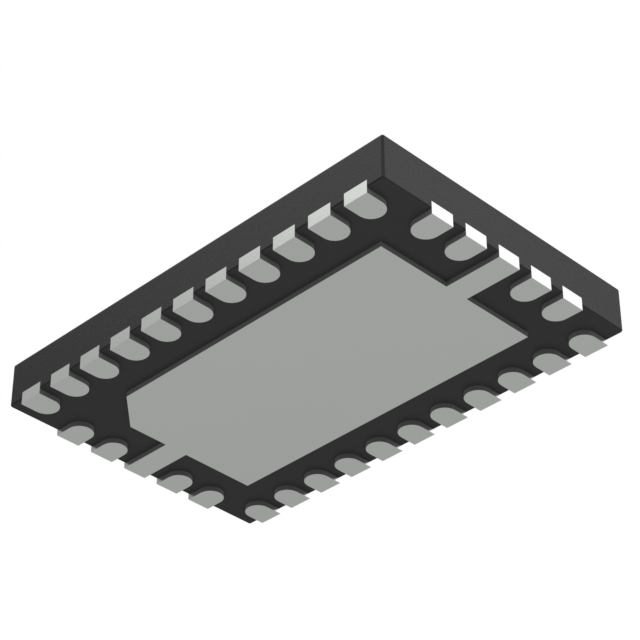

| Package / Case | 32-XFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | CML |
| Type | Retimer |
| Input | CML |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.71V ~ 1.89V |
| Applications | USB Type C |
| Current - Supply | 360mA |
| Data Rate (Max) | 10Gbps |
| Supplier Device Package | X1-QFN2845-32 |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 10 pF |
