MCR100-8
THYRISTOR SOT23 T&R 3KManufacturer: Diodes Incorporated
Categories: SCRs
Quality Control: Learn More
SCR 600 V 250 mA Sensitive Gate Surface Mount SOT-23-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | SOT-23-3 |
| Current - On State (It (RMS)) (Max) | 250 mA |
| Voltage - Off State | 600 V |
Request a Quote
Clients Also Buy
T16M35T800HC
THYRISTOR ITO-220AB TUBE 50PCS
SD1A220G
THYRISTOR DO-15 T&R 4K

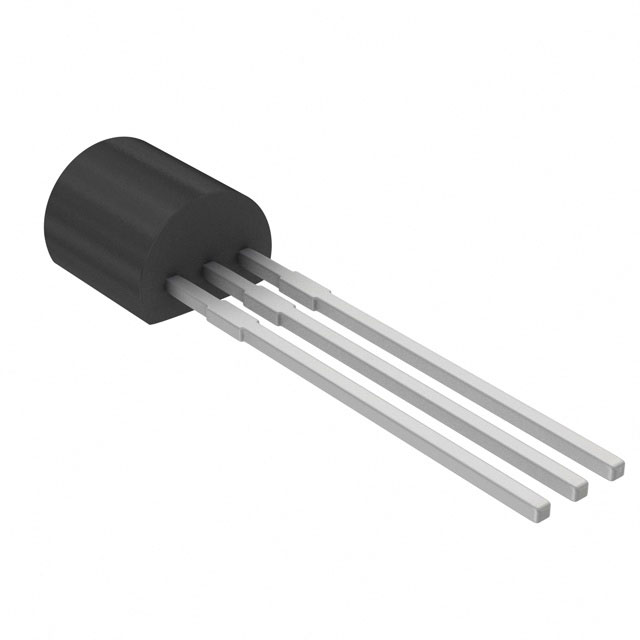

S1U50700A
