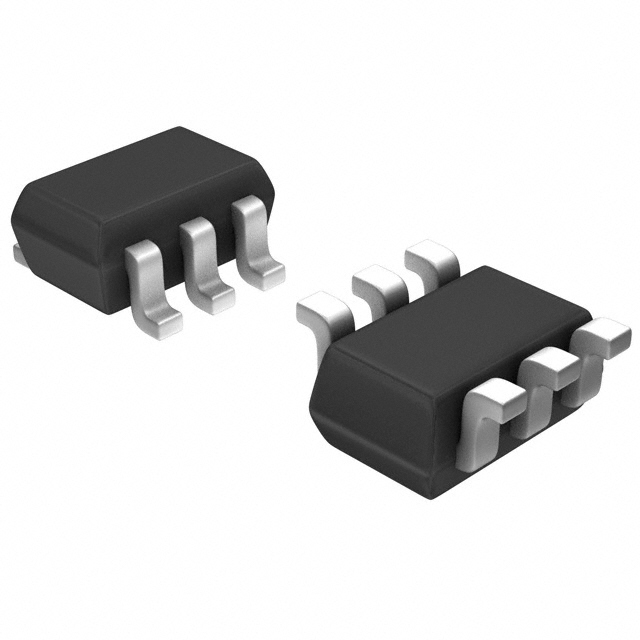

ZAMP003H6TC
IC AMP DBS 800MHZ-2.5GHZ SC70-6Manufacturer: Diodes Incorporated
Categories: RF Amplifiers
Quality Control: Learn More
Diodes Incorporated ZAMP003H6TC is a high-performance RF amplifier designed for demanding applications in the telecommunications and consumer electronics sectors. This component operates across a broad frequency range of 800MHz to 2.5GHz, making it suitable for Direct Broadcast Satellite (DBS) systems, set-top boxes, and Smart Metering Radio (SMR) infrastructure, as well as general-purpose RF amplification. The device features a typical gain of 14.8dB at 950MHz with a low noise figure of 5.5dB, ensuring excellent signal integrity. It is housed in a compact SC-70-6 (6-TSSOP, SC-88, SOT-363) surface-mount package. Operating from a supply voltage of 4.5V to 5.5V, the ZAMP003H6TC exhibits a quiescent current consumption between 6.8mA and 8mA. The output third-order intercept point (IP3) is rated at -7.5dBm to -6.5dBm, reflecting its capability for handling complex signal environments. The component is supplied in Tape & Reel (TR) packaging for efficient automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Frequency | 800MHz ~ 2.5GHz |
| RF Type | DBS, Set Top Box, SMR, General Purpose |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 14dB ~ 14.8dB |
| Current - Supply | 6.8mA ~ 8mA |
| Noise Figure | 5.5dB |
| P1dB | -7.5dBm ~ -6.5dBm |
| Test Frequency | 950MHz |
| Supplier Device Package | SC-70-6 |
