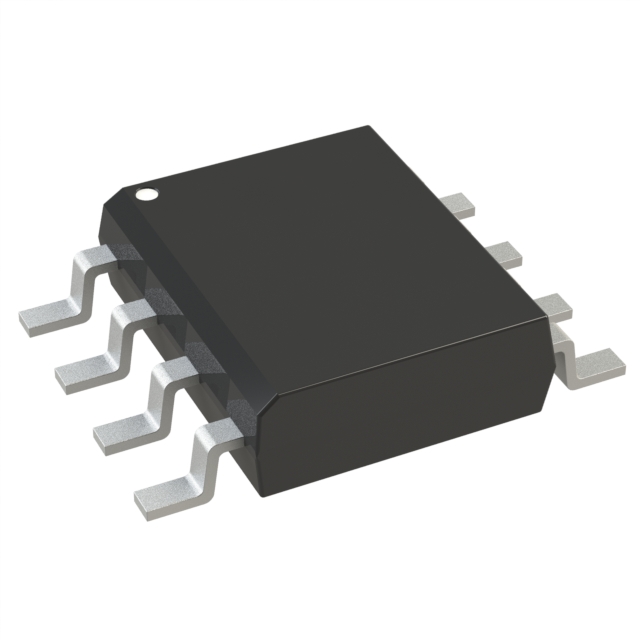

ZXMS81045SPQ-13
HIGH SIDE INTELLIFET SO-8EP T&RManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 4A 8-SO-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 34mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-SO-EP |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit |
