PI5PD2557ZCEX

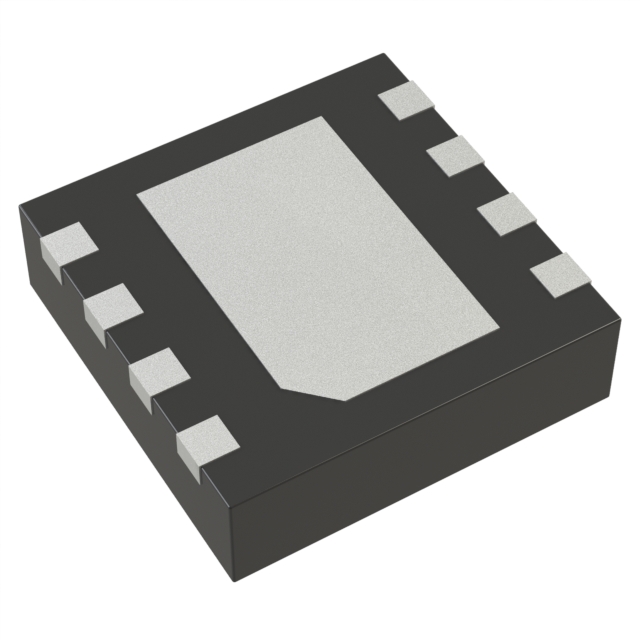

IC PWR SWITCH N-CHAN 1:1 8TDFNManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Diodes Incorporated PI5PD2557ZCEX is a high-side N-channel power switch with a 1:1 input-to-output ratio, capable of delivering up to 5A. This device features adjustable current limiting, over-temperature, and undervoltage lockout (UVLO) fault protection. Integrated status flags provide system monitoring capabilities. The PI5PD2557ZCEX is designed for surface mounting in an 8-TDFN (3x3) package, supplied on tape and reel. Its typical on-resistance is 22mOhm, and it operates across a load voltage range of 2.5V to 5.5V within an ambient temperature range of -40°C to 85°C. This component is suitable for applications in consumer electronics, personal computers, and industrial systems requiring robust power distribution control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 22mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
