PI5PD2069UEE

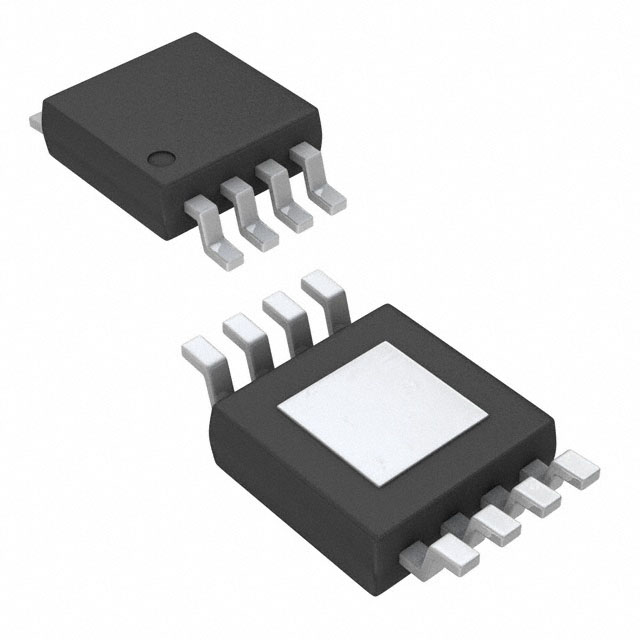

IC PWR SWITCH N-CHAN 1:1 8MSOPManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Diodes Incorporated PI5PD2069UEE is a high-side N-channel power switch designed for efficient power distribution. This component, part of the USB Switch family, offers a 1:1 input-to-output ratio and can deliver a maximum continuous output current of 2.1A. Key fault protection mechanisms include fixed current limiting, over-temperature shutdown, reverse current protection, and undervoltage lockout (UVLO).
The PI5PD2069UEE features a low On-Resistance (Rds On) of 70mOhm (typical) and operates across a load voltage range of 2.7V to 5.5V. The interface is controlled via an ON/OFF input. This device is packaged in an 8-MSOP-EP (Exposed Pad) package, suitable for surface mounting. Its operating temperature range is -40°C to 105°C (TJ). This component finds application in portable electronics, computing, and automotive systems where robust power management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.1A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-MSOP-EP |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
