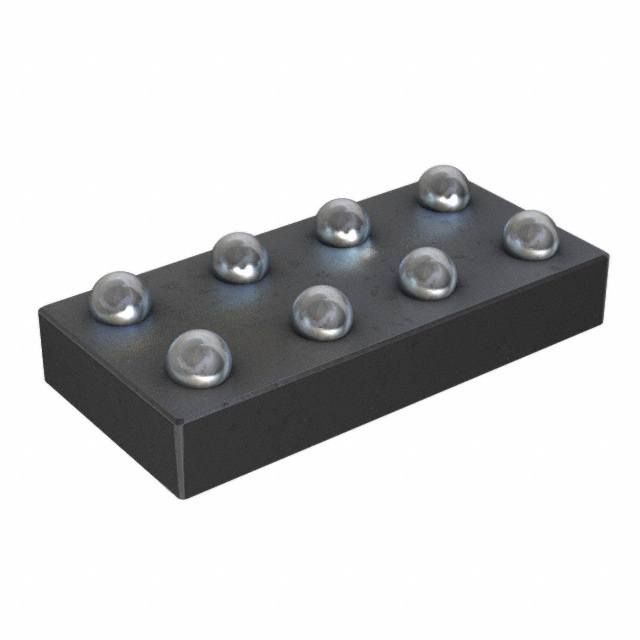

PI3PD22919GBEX
IC PWR SWITCH N-CHAN 1:1 8CSPManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Diodes Incorporated PI3PD22919GBEX is a single-channel, N-channel power switch designed for high-side load control. This 8-CSP (0.9x1.9) packaged component delivers up to 4A output current with a low on-resistance of 7.1mOhm (typ). Key features include integrated load discharge and slew rate control, enabling controlled power-up and down sequences. The PI3PD22919GBEX operates across a load voltage range of 0.75V to 3.6V and is suitable for ambient temperatures from -40°C to 125°C. Its ON/OFF interface and surface mount design facilitate integration into compact designs. This device is commonly utilized in consumer electronics, mobile devices, and computing applications requiring efficient and reliable power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFBGA, CSPBGA |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 7.1mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0.75V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 8-CSP (0.9x1.9) |
| Fault Protection | - |
