DML3012LDC-7A
MOSFET BVDSS: 8V~24V V-DFN3030-1Manufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More

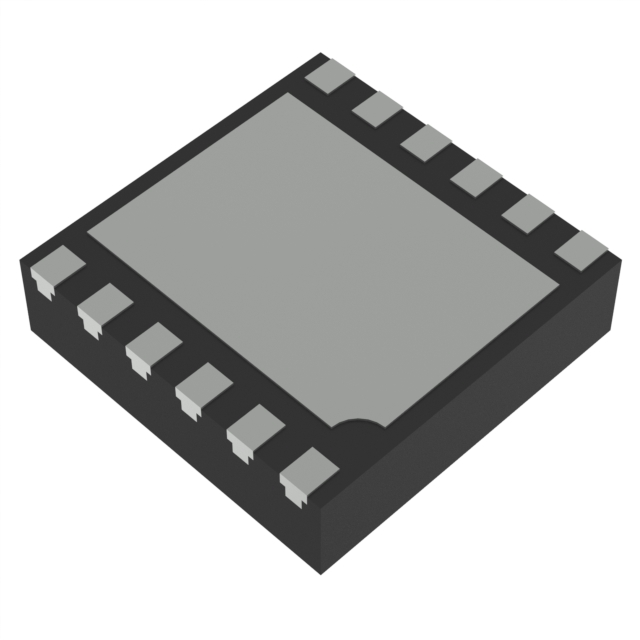

Power Switch/Driver 1:1 N-Channel V-DFN3030-12 (Type B)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Good, Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 4.8mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 0.5V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | V-DFN3030-12 (Type B) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Grade | Automotive |
| Qualification | AEC-Q100 |
