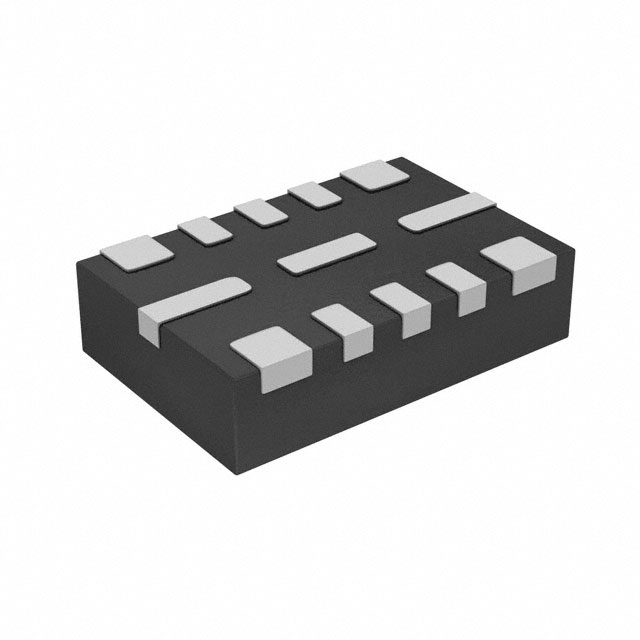

AP91352MN1-DT8-7
IC PWR SWITCH N-CHAN 1:1 12WQFNManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 2.5A W-QFN3020-12
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 3.6V ~ 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | W-QFN3020-12 |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
