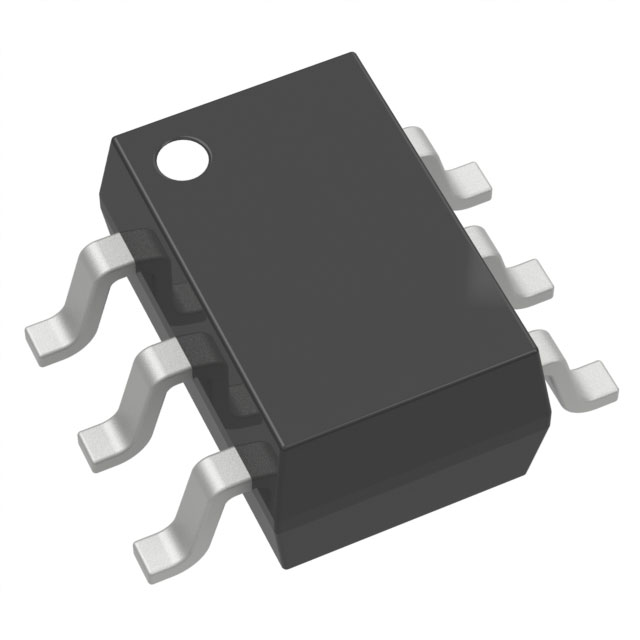

AP22655WU-7
LOAD SWITCH TSOT26 T&R 3KManufacturer: Diodes Incorporated
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 P-Channel 3.14A TSOT-26 (Type A1)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | P-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3.14A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | TSOT-26 (Type A1) |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO |
