WX7021D0100.000000
XTAL OSC XO 100.0000MHZ LVPECLManufacturer: Diodes Incorporated
Categories: Oscillators
Quality Control: Learn More

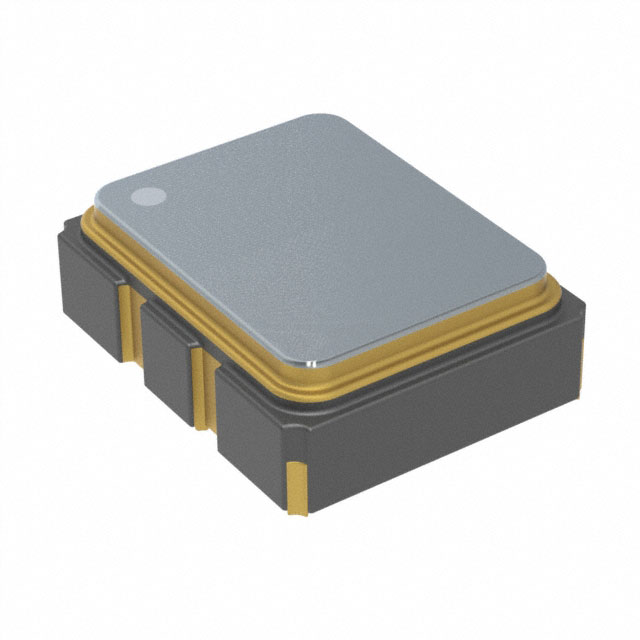

Diodes Incorporated SaRonix-eCera™ WX Series WX7021D0100-000000 is a 100 MHz crystal oscillator with LVPECL output. This surface-mount component operates from a 3.3V supply and features an Enable/Disable function. The oscillator offers a frequency stability of ±25ppm over an operating temperature range of -40°C to 85°C. Its dimensions are 7.00mm x 5.00mm with a maximum seated height of 2.00mm. The package is a 6-SMD, No Lead, supplied on tape and reel. This oscillator is suitable for applications requiring precise timing, such as telecommunications infrastructure, networking equipment, and high-speed data processing. The current supply is a maximum of 90mA.
Additional Information
Series: SaRonix-eCera™ WXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 90mA |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
