SHPCIE100
XTAL OSC XO 100.0000MHZ HCSL SMDManufacturer: Diodes Incorporated
Categories: Oscillators
Quality Control: Learn More
Diodes Incorporated SaRonix-eCera™ SH series 100 MHz crystal oscillator (XO) with HCSL output. This surface mount component, part number SHPCIE100, operates at 3.3V and features an enable/disable function. The oscillator offers a frequency stability of ±50ppm across an operating temperature range of -40°C to 85°C. Dimensions are 7.00mm x 5.00mm with a maximum seated height of 2.00mm. The 6-SMD, No Lead package is supplied on tape and reel. This component is suitable for applications requiring precise timing in areas such as networking, telecommunications, and computing. Maximum supply current is 40mA.
Additional Information
Series: SaRonix-eCera™ SHRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 40mA |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

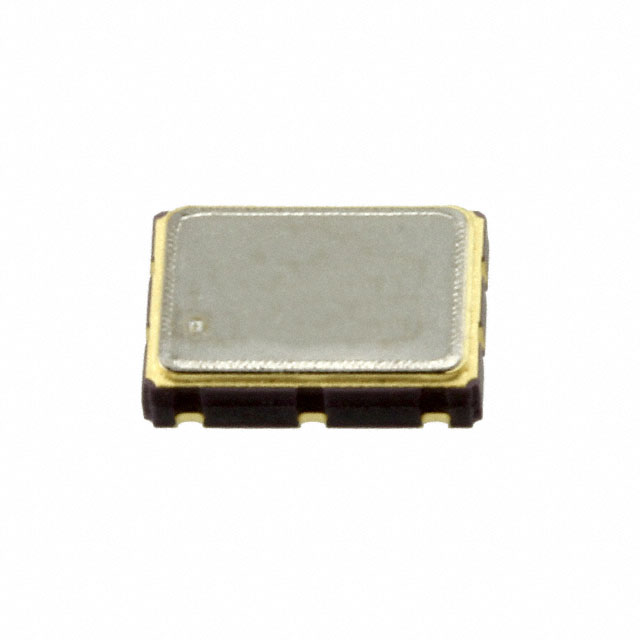

SHA000001
