SHA000001
XTAL OSC XO 100.0000MHZ HCSL SMDManufacturer: Diodes Incorporated
Categories: Oscillators
Quality Control: Learn More

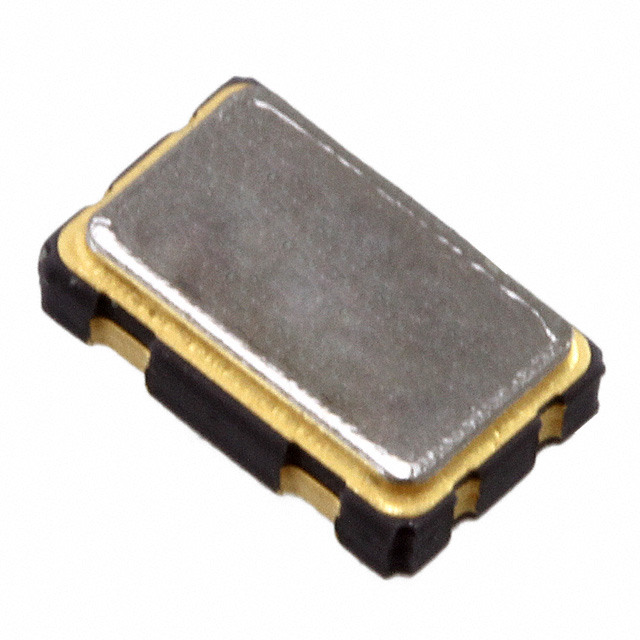

Diodes Incorporated SaRonix-eCera™ SH series 100 MHz crystal oscillator (XO) with HCSL output. This surface mount component, part number SHA000001, operates from a 3.3V supply and features an enable/disable function. With a frequency stability of ±50ppm and a maximum supply current of 40mA, it is designed for demanding applications. The 6-SMD, No Lead package measures 7.00mm x 5.00mm with a maximum seated height of 2.00mm. This oscillator is suitable for use in communication infrastructure, industrial automation, and consumer electronics. Packaging is provided on tape and reel.
Additional Information
Series: SaRonix-eCera™ SHRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Output | HCSL |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±50ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 40mA |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
