KX2132709Z
XTAL OSC XO 32.7680 KHZ LVCMOSManufacturer: Diodes Incorporated
Categories: Oscillators
Quality Control: Learn More
The Diodes Incorporated SaRonix-eCera™ KX series KX2132709Z is a 32.768 kHz XO (Standard) oscillator with LVCMOS output. This component operates at a 3.3V supply voltage and features an Enable/Disable function. Designed for surface mount applications, it is housed in a 4-SMD, No Lead package with dimensions of 2.50mm x 2.00mm and a maximum seated height of 1.00mm. The device offers a frequency stability of ±25ppm and a maximum supply current of 15µA. The KX2132709Z is suitable for use in industrial and consumer electronics applications requiring precise timing. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SaRonix-eCera™ KXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098"" L x 0.079"" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Current - Supply (Max) | 15µA |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 32.768 kHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

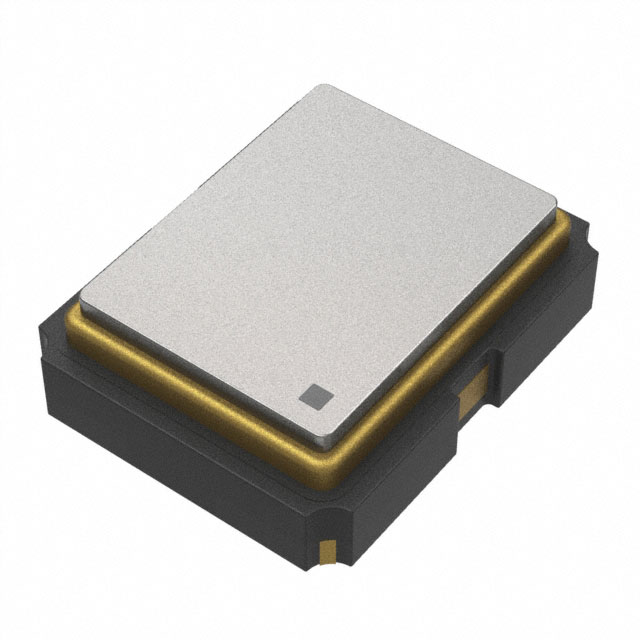

KX1132707Q
