HX21A0007Z
CRYSTAL OSCILLATOR SEAM2520 T&RManufacturer: Diodes Incorporated
Categories: Oscillators
Quality Control: Learn More
Diodes Incorporated HX Series crystal oscillator, part number HX21A0007Z. This 100 MHz XO (Standard) oscillator utilizes a crystal resonator and features LVCMOS output. Operating from a 3.3V supply, it offers a frequency stability of ±25ppm across an operating temperature range of -40°C to 105°C. The component includes an Enable/Disable function. Its compact 2.50mm x 2.00mm footprint with a seated height of 1.00mm makes it suitable for surface mount applications. The HX21A0007Z is supplied in Tape & Reel packaging. This component is utilized in various industries including telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: HXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098"" L x 0.079"" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Output | LVCMOS |
| Function | Enable/Disable |
| Type | XO (Standard) |
| Operating Temperature | -40°C ~ 105°C |
| Frequency Stability | ±25ppm |
| Voltage - Supply | 3.3V |
| Ratings | - |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 40mA |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 100 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

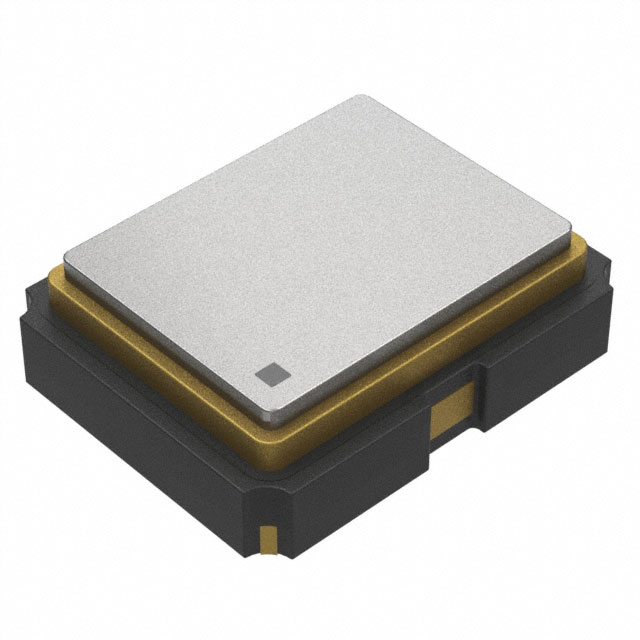

HX21C5006Z
