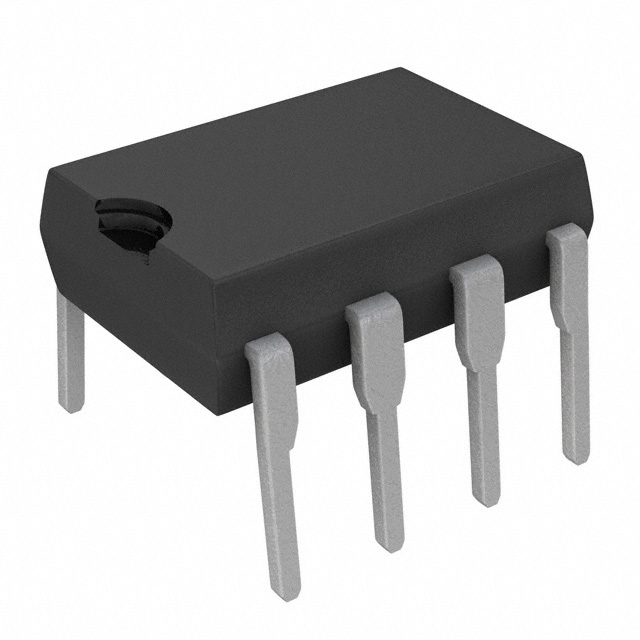

ZXBM5409Q-N-U
MOTOR DRIVER SERVO CTRL PDIP-8Manufacturer: Diodes Incorporated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Motor Driver Power MOSFET 8-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 800mA |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 8V ~ 18V |
| Applications | - |
| Technology | Power MOSFET |
| Voltage - Load | - |
| Supplier Device Package | 8-PDIP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC, DC Servo |
| Step Resolution | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
