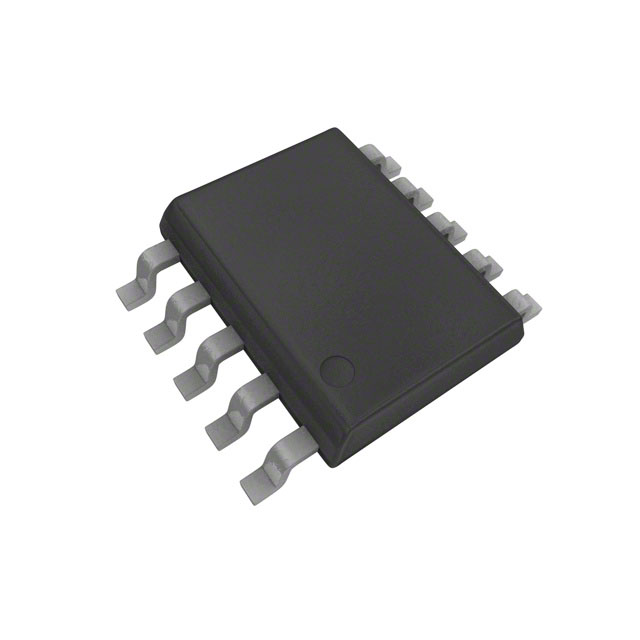

AM4953GSTR-G1
IC MOTOR DRIVER 2.2V-16V 10SSOPManufacturer: Diodes Incorporated
Categories: Motor Drivers, Controllers
Quality Control: Learn More
Diodes Incorporated AM4953GSTR-G1 is a bipolar motor driver designed for efficient fan motor control. This fully integrated component features a control and power stage with a parallel interface for seamless integration into system designs. Delivering up to 800mA output current, it is suitable for brushed DC motor applications requiring precise control. The device operates within a voltage range of 2.2V to 16V for both load and supply, offering flexibility across various power configurations. Its output stage is configured as two half-bridges, enabling robust motor drive capabilities. The AM4953GSTR-G1 is supplied in a 10-SSOP package on tape and reel, facilitating surface mount assembly. Operating across an ambient temperature range of -40°C to 105°C, this component is utilized in applications such as industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 800mA |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 2.2V ~ 16V |
| Applications | Fan Motor Driver |
| Technology | Bipolar |
| Voltage - Load | 2.2V ~ 16V |
| Supplier Device Package | 10-SSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
