PAM3101FKF180
IC REG LINEAR 1.8V 300MA 6DFNManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Diodes Incorporated PAM3101FKF180 is a fixed, positive linear voltage regulator designed for efficient power delivery. This component provides a stable 1.8V output with a maximum current capability of 300mA. Featuring an enable pin for control and robust protection circuits including over-current, over-temperature, and short-circuit protection, it is suitable for demanding applications. The device operates with a quiescent current of 90 µA and a maximum input voltage of 5.5V. Its low dropout voltage of 1.1V at 300mA ensures efficient operation even under load. Housed in a compact 6-DFN (1.6x1.6) package with an exposed pad for enhanced thermal performance, the PAM3101FKF180 is surface-mount compatible and supplied on tape and reel. This regulator is commonly utilized in portable electronics and various power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

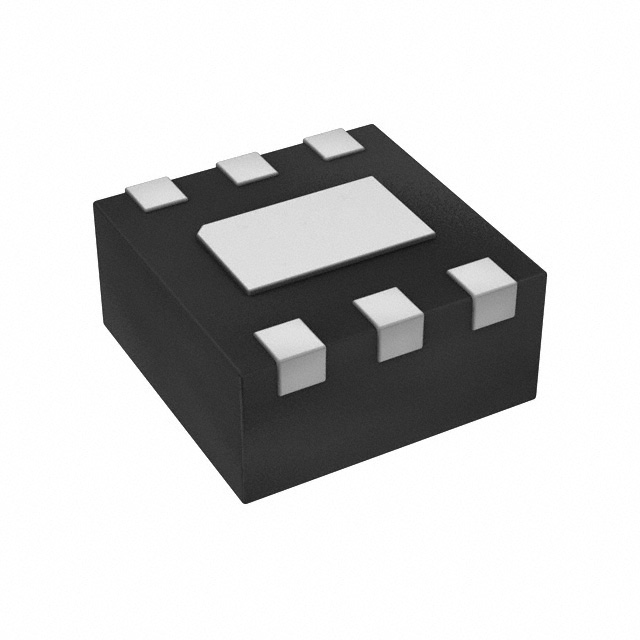

| Package / Case | 6-WFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 90 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-DFN (1.6x1.6) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 1.1V @ 300mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
