LSP78L33AATB
IC REGULATORManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Diodes Incorporated LSP78L33AATB is a positive, fixed output linear voltage regulator. This single-output device delivers a stable 3.3V with a maximum output current capability of 100mA. The regulator features a low quiescent current of 5.5mA and a maximum dropout voltage of 1.8V at 100mA. Protection features include over temperature and short circuit protection. With a wide input voltage range up to 20V and a typical Power Supply Rejection Ratio (PSRR) of 49dB at 120Hz, this component is suitable for applications in consumer electronics and industrial control systems. The LSP78L33AATB is supplied in a SOT-89-3 package for surface mounting and operates across an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 5.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 49dB (120Hz) |
| Voltage Dropout (Max) | 1.8V @ 100mA |
| Protection Features | Over Temperature, Short Circuit |
Request a Quote
Clients Also Buy
AP7361EA-15ER-13
LDO CMOS HICURR SOT223 T&R 2.5K

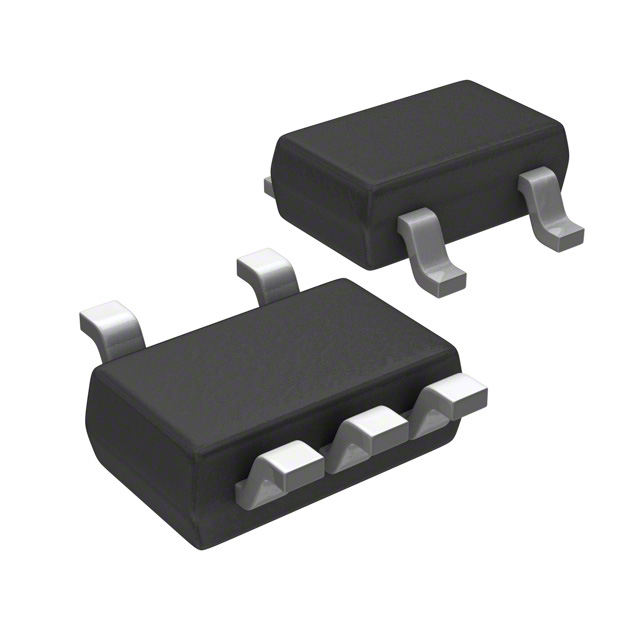

AP2125KC-2.5TRG1
