LSP2015CATB330
IC CHIPManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

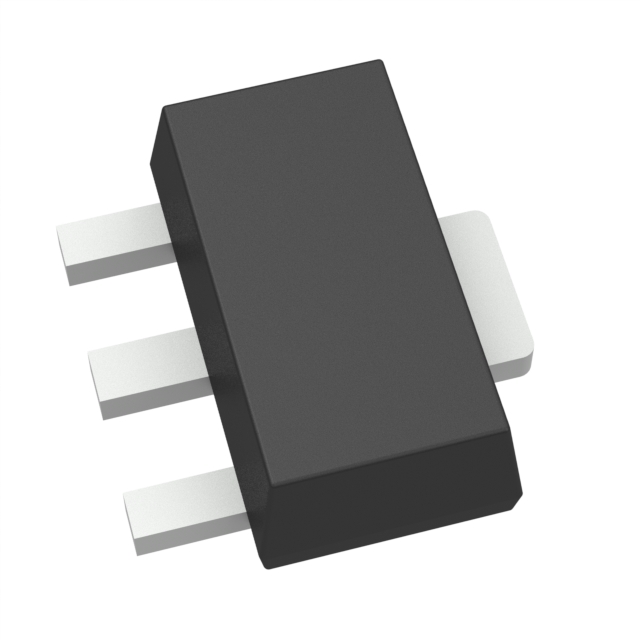

The Diodes Incorporated LSP2015CATB330 is a positive fixed linear voltage regulator with a 3.3V output and a maximum output current of 300mA. This device features a low quiescent current of 100µA and a low dropout voltage of 0.27V at 300mA. The LSP2015CATB330 includes overcurrent, overtemperature, and short-circuit protection for enhanced reliability. Its input voltage range extends up to 5.5V. Packaged in a SOT-89-3 (TO-243AA) surface-mount format, it is suitable for applications in consumer electronics and industrial control systems. The device operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | 0.27V @ 300mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
