AP7384-50V-A
IC REG LIN 5V 50MA TO92 AMMO 2KManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Diodes Incorporated AP7384-50V-A is a positive, fixed 5V linear voltage regulator. This component delivers a stable 50mA output current with a typical quiescent current of 25 µA, making it suitable for power-sensitive applications. Featuring integrated current limit and thermal shutdown protection, the AP7384-50V-A is designed for robustness. It operates across a wide temperature range of -40°C to 125°C and supports input voltages up to 40V. The device is available in a TO-92 package and is supplied on tape and box for automated assembly. This regulator finds application in consumer electronics, industrial control systems, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |

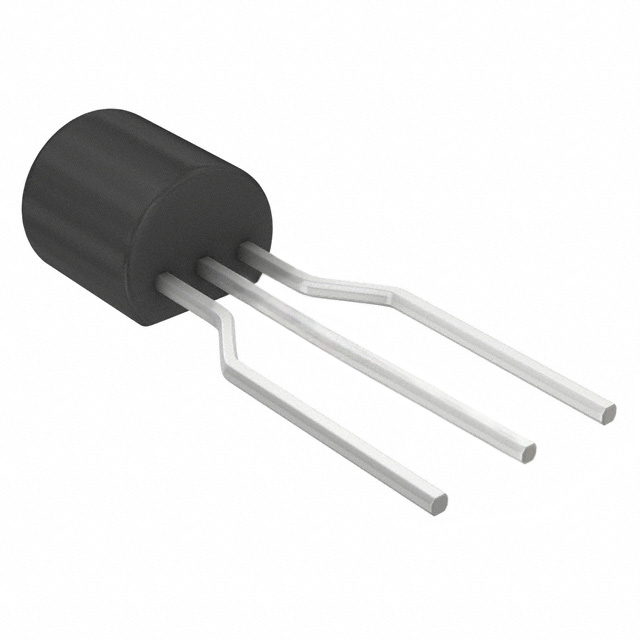

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 50mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-92 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Current Limit, Thermal Shutdown |
| Current - Supply (Max) | 25 µA |
