AP7362-HA-7
IC REG LIN POS ADJ 1.5A 8DFNManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

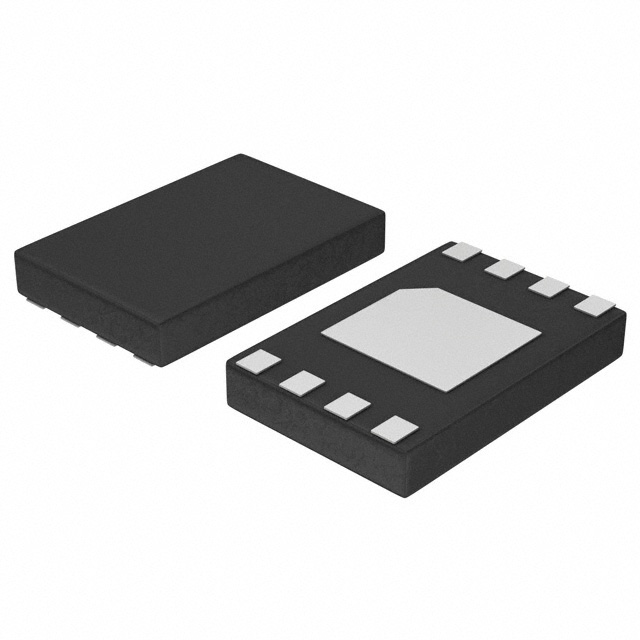

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A U-DFN2030-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.2 mA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | U-DFN2030-8 |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Control Features | Enable |
| PSRR | 65dB ~ 61dB (120Hz ~ 1kHz) |
| Voltage Dropout (Max) | 0.24V @ 1.5A |
| Protection Features | Over Current, Over Temperature |
