AP7361EA-10FGE-7
LDO CMOS HICURR U-DFN3030-8 T&RManufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

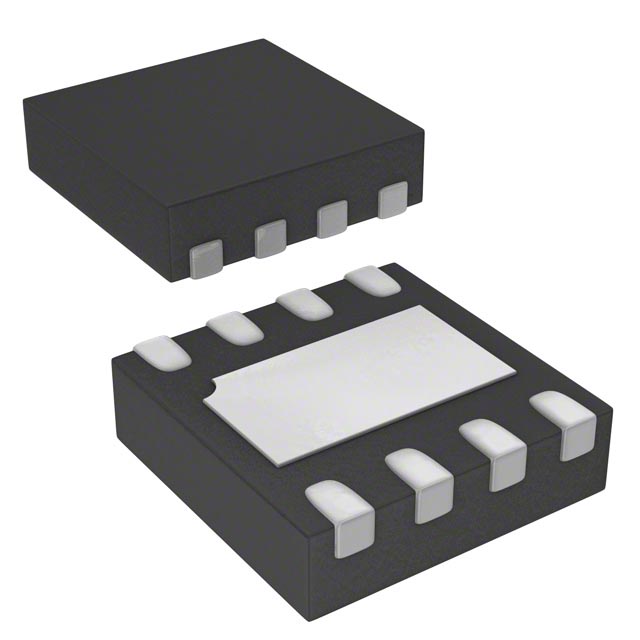

The Diodes Incorporated AP7361EA-10FGE-7 is a high-current, positive fixed output voltage CMOS LDO linear regulator. This device offers a 1A output current capability with a low quiescent current of 91µA, making it suitable for power-sensitive applications. It features integrated over-current, over-temperature, and short-circuit protection for enhanced reliability. The AP7361EA-10FGE-7 is supplied in an 8-UDFN Exposed Pad (Type E) package for surface mounting and operates with an input voltage up to 6V, providing a fixed 1V output. This component finds application in consumer electronics, industrial automation, and power management systems. The package type is Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 91 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | U-DFN3030-8 (Type E) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1V |
| Control Features | Current Limit, Enable |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
