AP7350D-12CF4-7
IC REG LIN 1.2V 150MA X2WLB0606Manufacturer: Diodes Incorporated
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

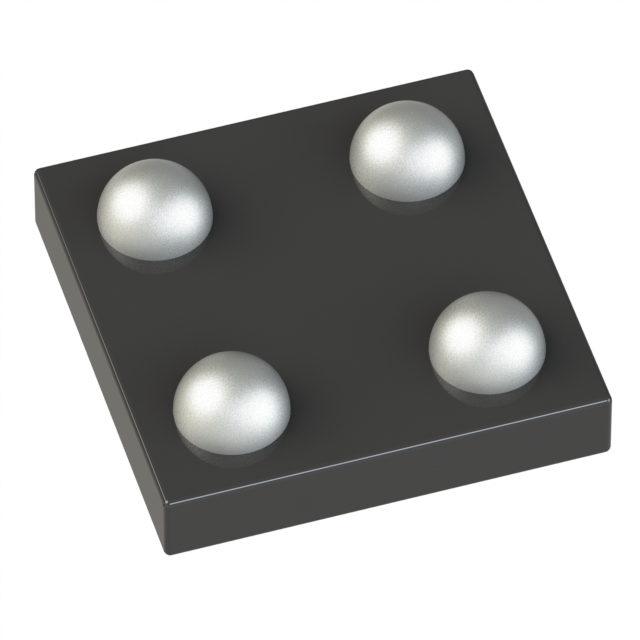

The Diodes Incorporated AP7350D-12CF4-7 is a fixed, positive linear voltage regulator. This component provides a stable 1.2V output capable of delivering up to 150mA of current. Featuring a low quiescent current of 400 nA, it is designed for power-sensitive applications. The device operates with an input voltage range up to 5.25V and exhibits a maximum dropout voltage of 0.9V at the full 150mA output. Included protection features consist of current limiting. The AP7350D-12CF4-7 is supplied in a compact 4-XFBGA, WLBGA package, specifically the X2-WLB0606-4, and is available on tape and reel. This component finds application in portable electronics, power management solutions, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 400 nA |
| Voltage - Input (Max) | 5.25V |
| Number of Regulators | 1 |
| Supplier Device Package | X2-WLB0606-4 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.9V @ 150mA |
| Protection Features | Current Limit |
